Collection: Power Meters

Power meters are essential devices used to measure various electrical parameters in single-phase or three-phase electrical systems. They are crucial for monitoring, managing, and optimizing energy consumption in residential, commercial, and industrial settings.¹

Here's a breakdown of what power meters are used for and how they work:

What Power Meters Measure:

Power meters are capable of measuring a wide range of electrical parameters with high accuracy, including:

• Voltage (V): The electrical potential difference.²



• Current (A): The flow of electrical charge.³



• Active Power (Watts): The actual power consumed by a load that performs useful work.⁴



• Reactive Power (VAR): The power that oscillates between the source and the load, not doing useful work but necessary for magnetic fields in inductive loads.⁵



• Apparent Power (VA): The total power supplied to a circuit, which is the vector sum of active and reactive power.⁶



• Power Factor: The ratio of active power to apparent power, indicating how efficiently electrical power is being used.⁷



• Frequency (Hz): The rate at which the current changes direction.

• Energy Consumption (kWh): The total amount of electrical energy consumed over a period, typically used for billing.⁸



• Total Harmonic Distortion (THD): A measure of the harmonic content present in the voltage or current waveform, which can indicate power quality issues.⁹



• Crest Factor: The ratio of the peak value to the RMS value of a waveform.

How Power Meters Work (General Principle):

Most modern power meters work by continuously sampling the voltage and current waveforms. They then use microprocessors and digital signal processing technology to perform calculations and derive the various power parameters.10 This digital approach ensures high accuracy, stability, and reliability.11 Some advanced meters can also detect deformations caused by mechanical stress, using strain gauges.

Applications of Power Meters:

• Billing and Revenue Collection: Utility companies use power meters to accurately bill customers based on their energy consumption.

• Energy Management: Businesses and homeowners use them to monitor energy usage patterns, identify energy waste, and implement strategies to reduce consumption and save on costs.¹²



• Load Management: Utilities use power meter data to manage electrical grids, optimize energy distribution, and prevent overloads during peak demand.¹³



• Power Quality Monitoring: Advanced power meters can detect power quality issues like voltage sags, surges, and harmonics, helping to ensure reliable power supply and prevent equipment damage.¹⁴



• Sub-Metering: In multi-unit buildings or industrial facilities, sub-meters measure energy usage of individual units, tenants, or departments for fair billing and promoting efficiency.¹⁵



• Renewable Energy Integration: For installations with solar panels or other renewable sources, power meters measure both energy consumed from the grid and excess energy fed back into it.¹⁶



• Industrial and Process Control: Essential for monitoring and optimizing energy usage in industrial processes, contributing to operational efficiency and cost reduction.¹⁷



• Compliance and Regulation: Used to ensure compliance with energy efficiency regulations and standards.

• Remote Monitoring and Control (Smart Meters): Modern smart meters allow for real-time data access and remote management of energy usage.¹⁸



• Fault Detection: Power meters can help identify equipment malfunctions or inefficiencies that could lead to failures.¹⁹

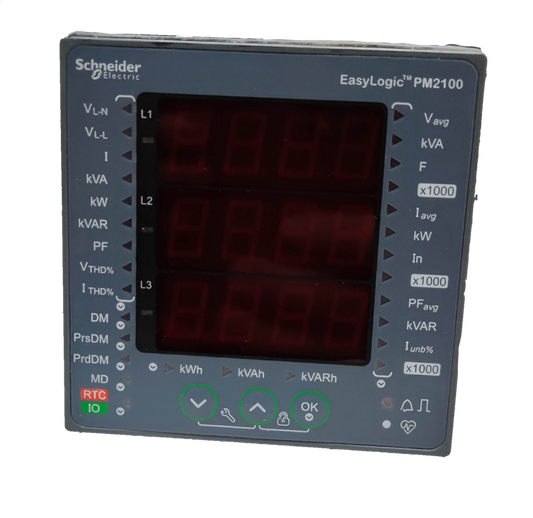

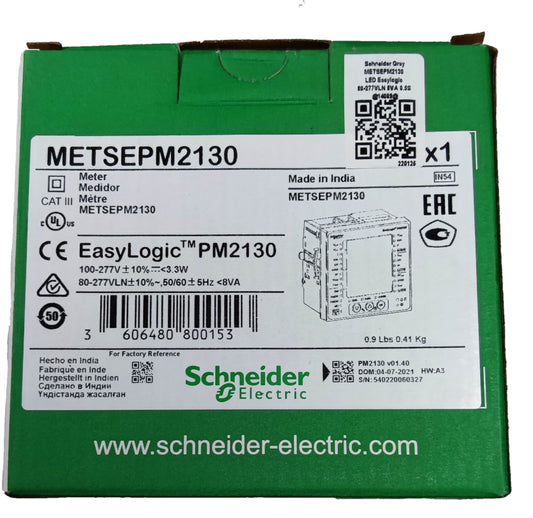

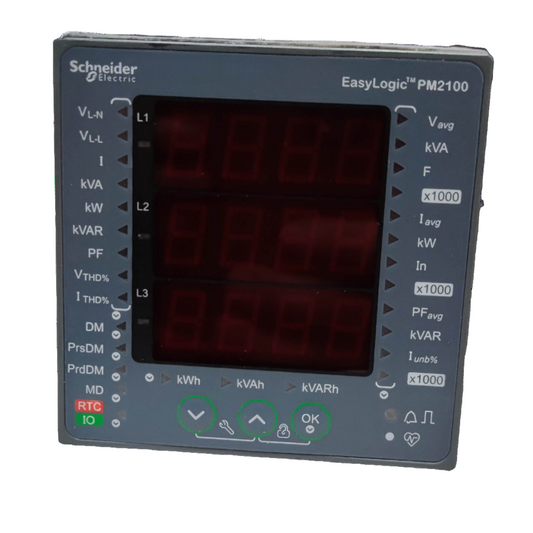

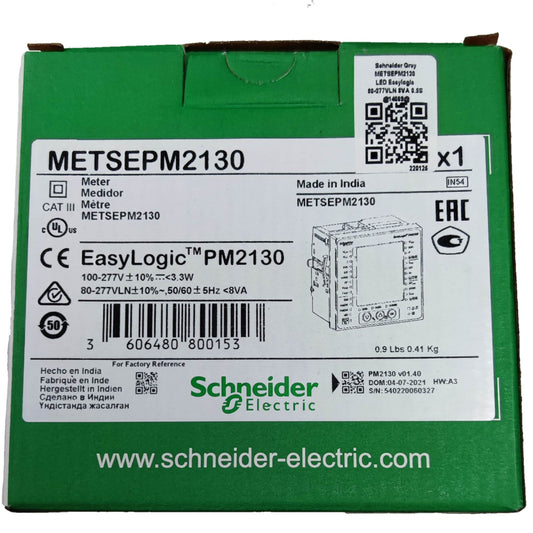

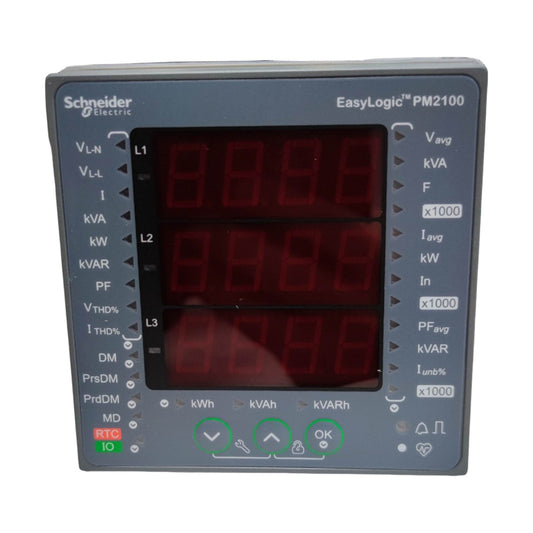

Electx Electrical Supply offers a range of power meters, including the Schneider Power Meter METSEPM2130 Easy Logic PM2130, providing precise and reliable power measurement solutions for various applications. Buy from Electx Electrical Supply for unbeatable value!
