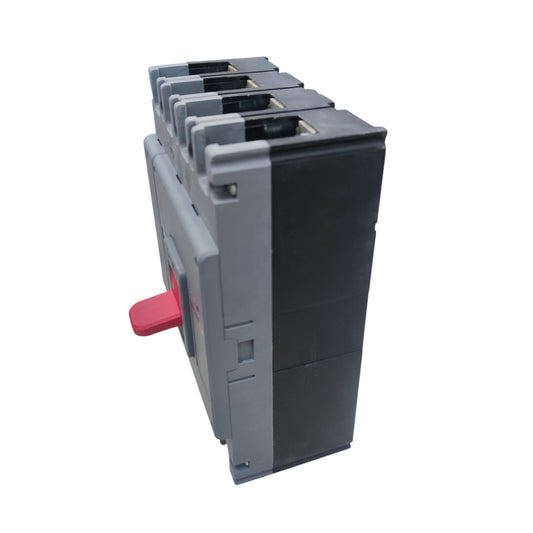

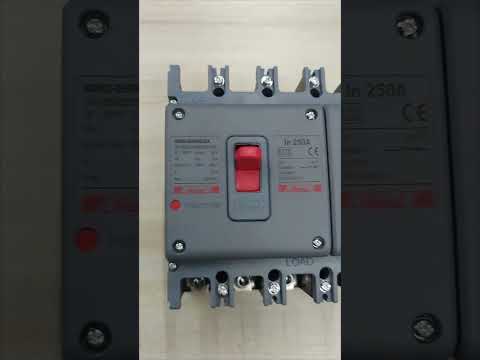

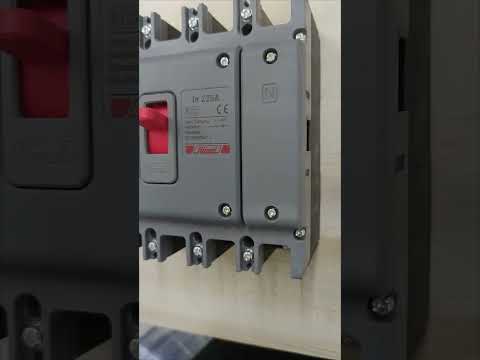

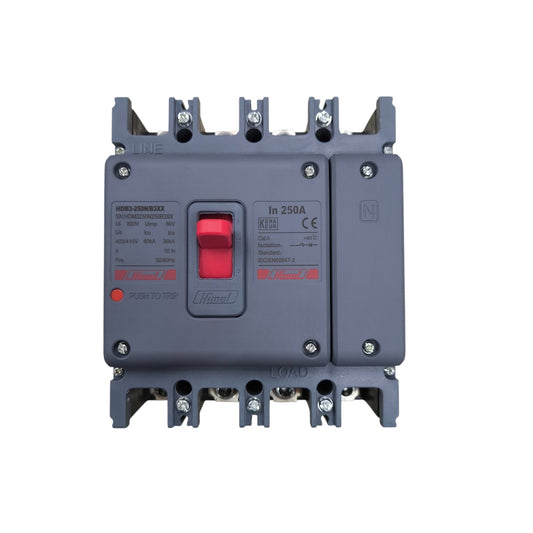

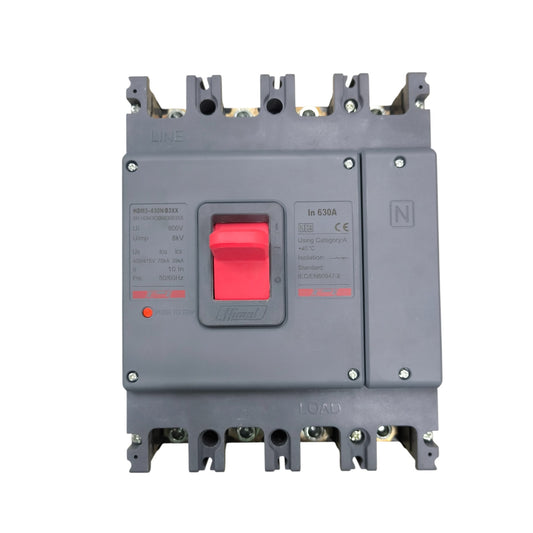

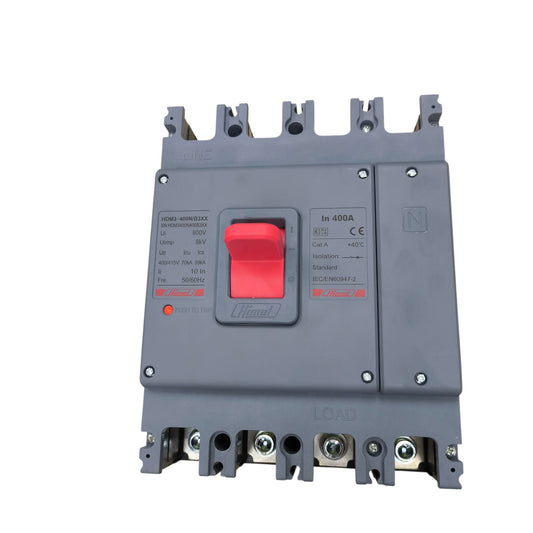

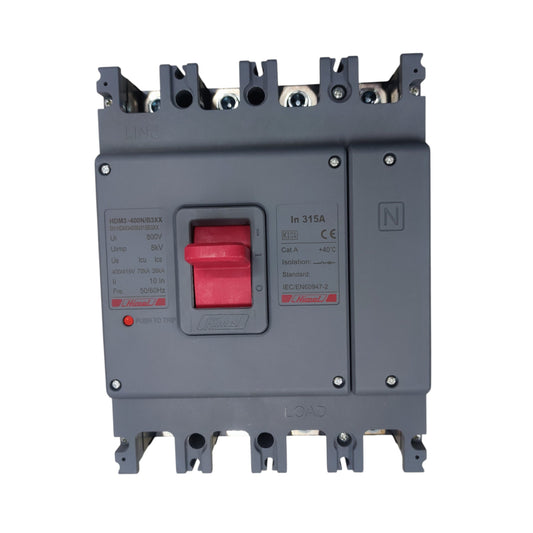

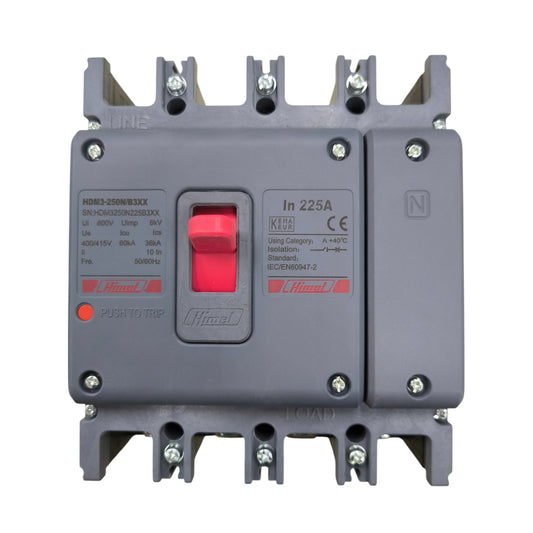

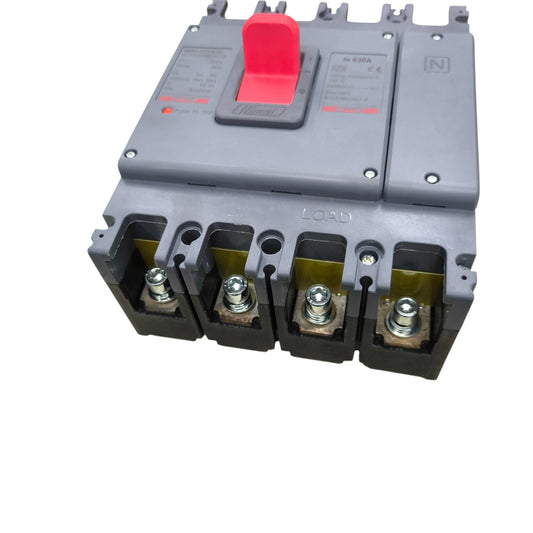

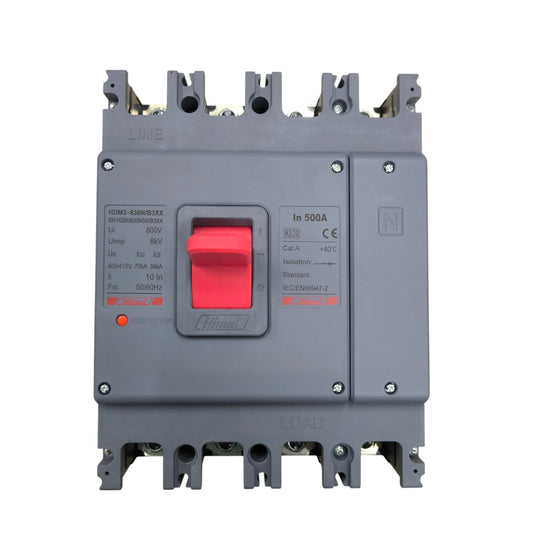

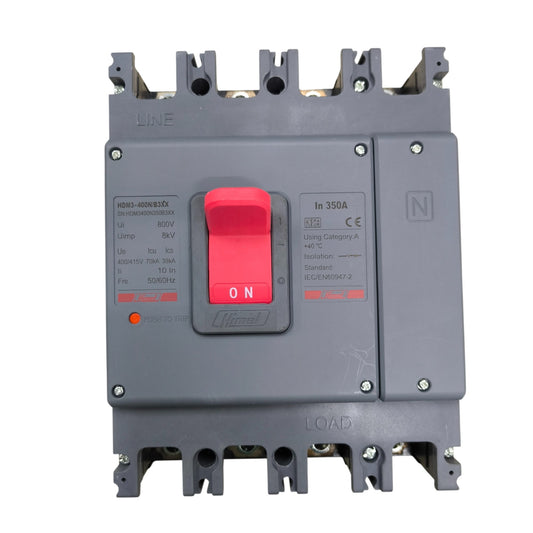

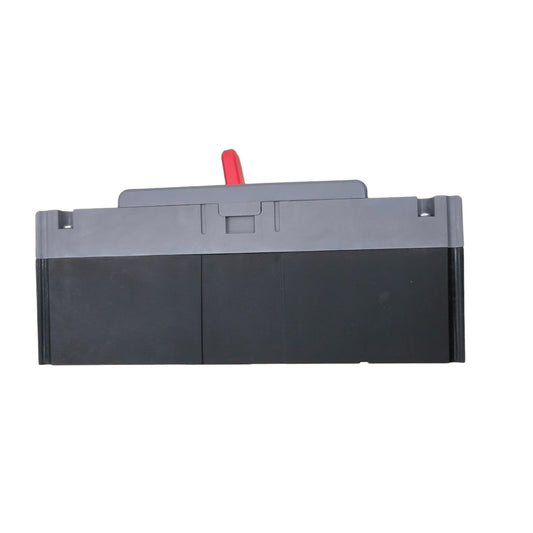

Collection: 4 Pole MCCB Industrial Circuit Breaker

A 4 Pole MCCB (Molded Case Circuit Breaker) is an industrial-grade electrical protection device designed to safeguard electrical circuits and equipment from overcurrents and short circuits.¹ The "4 Pole" designation means it can simultaneously disconnect all four conductors in a circuit, which is crucial for systems that require neutral line protection in addition to the three phases.²

Key Features and Applications of 4 Pole MCCBs:

• Comprehensive Protection: Unlike 3-pole MCCBs which only disconnect the three phases, a 4-pole MCCB also isolates the neutral conductor.³ This is vital in certain three-phase systems, especially those with unbalanced loads or harmonic currents, where the neutral wire can carry significant current and pose a safety risk.⁴



• Industrial Applications: Commonly used in heavy industrial plants, data centers, large commercial buildings, hospitals, and any facility requiring robust and reliable protection for motors, transformers, and complex power distribution systems.⁵



• Overcurrent and Short-Circuit Protection: Features both thermal protection (for overloads) and magnetic protection (for short circuits), ensuring a wide range of fault conditions are detected and interrupted.⁶



• Higher Current Ratings and Breaking Capacity: Designed to handle significantly higher currents (ranging from tens to thousands of amps) and short-circuit interrupting capacities (kA) compared to Miniature Circuit Breakers (MCBs), making them suitable for demanding industrial environments.⁷



• Adjustable Trip Settings: Many industrial MCCBs offer adjustable trip settings for both thermal and magnetic protection, allowing for fine-tuning to specific load requirements and improved coordination with other protective devices.⁸



• Scalability and Flexibility: Their robust design and range of accessories (like auxiliary contacts, shunt trips, undervoltage releases) make them highly adaptable for various applications and future system expansions.⁹



• Enhanced Safety: By disconnecting all four poles, they provide an extra layer of safety, especially in situations where a fault in the neutral line could be hazardous.¹⁰ They can also be integrated with Residual Current Devices (RCDs) for enhanced shock protection.



• Durability: Built to withstand the harsh conditions often found in industrial settings, offering a long mechanical and electrical life.¹¹



When selecting a 4 Pole MCCB, consider the rated current, breaking capacity (Icu), operating voltage, type of trip unit (thermal-magnetic or electronic), and any specific certifications or standards required for your application (e.g., IEC 60947-2).
